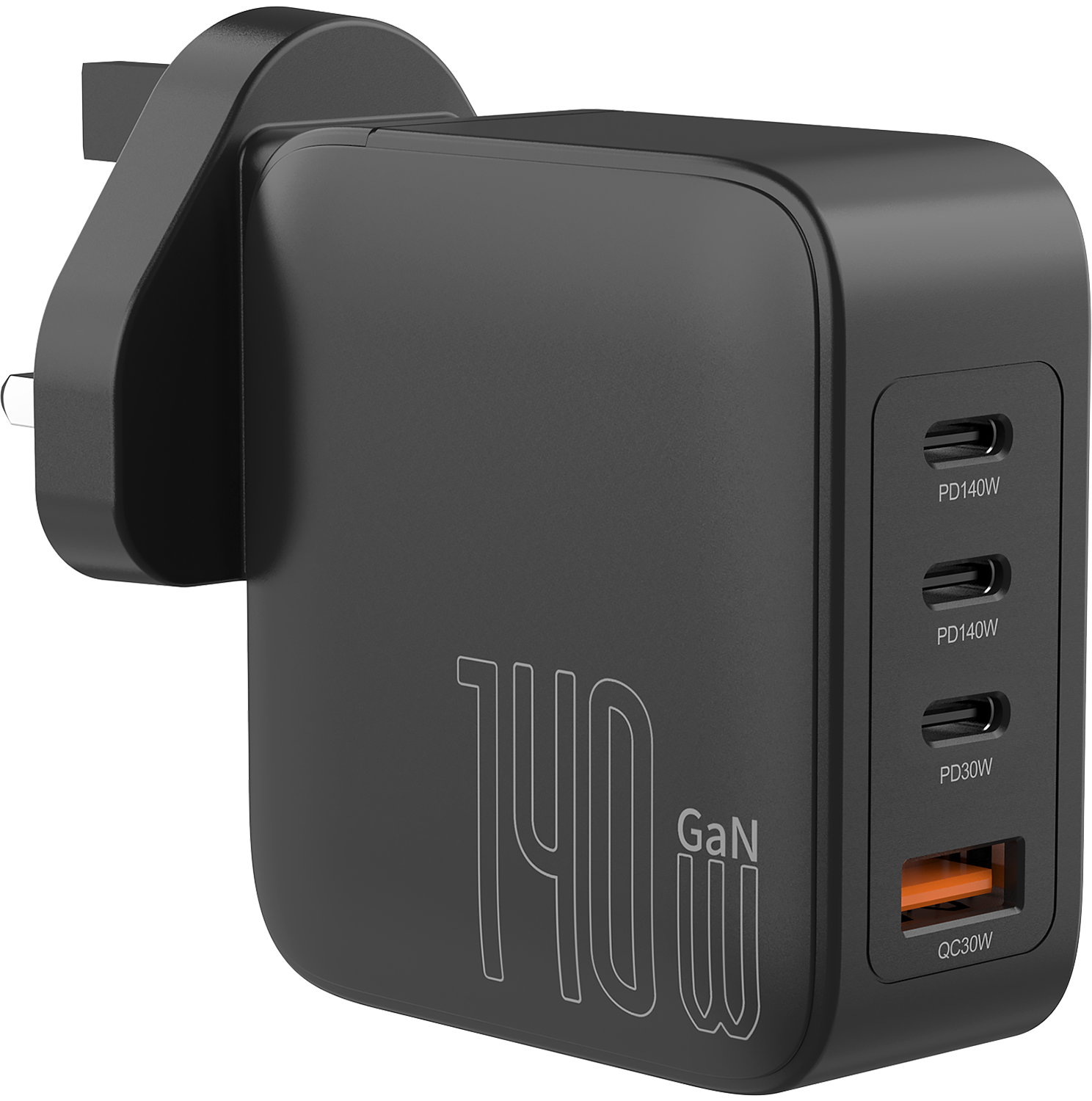

S-TR-306 140W GaN Wall Charger

140W

S-TR-306-3C1A140 GaN

Application scenario

Product display
Product parameter

Product Name: S-TR-306 140W Wall Charger

Model

S-TR-306-3C1A140

Input

  100V-240V 50Hz/60Hz

Type-C1/C2 Output

 5V/3A, 9V/3A, 12V/3A, 15V/3A,20V/5A, 28V/5A, 140W Max

Type-C3 Output

  5V/3A, 9V/3A, 12V/2.5A, 30W Max

USB-A Output

5V/3A, 9V/3A, 12V/2.5A, 30W Max

C1+C2 Output

70W+70W

C3+A Output

18W

C1/C2+C3 Output

  100W+30W

C1+C2+C3 Output

  65W+45W+30W

C1+C2+A Output

  65W+45W+18W

C1/C2+A Output

  100W+30W

C1/C2+(C3+A) Output

  100W+18W

C1+C2+(C3+A) Output

65W+45W+18WTotal Power140W Max
CertificateETL,FCC,CCC,UKCA,SAA,RoHs,KC,PSEColour  Black, White
Size67*63*31mmPlugEU,US,UK,AU


Product characteristics

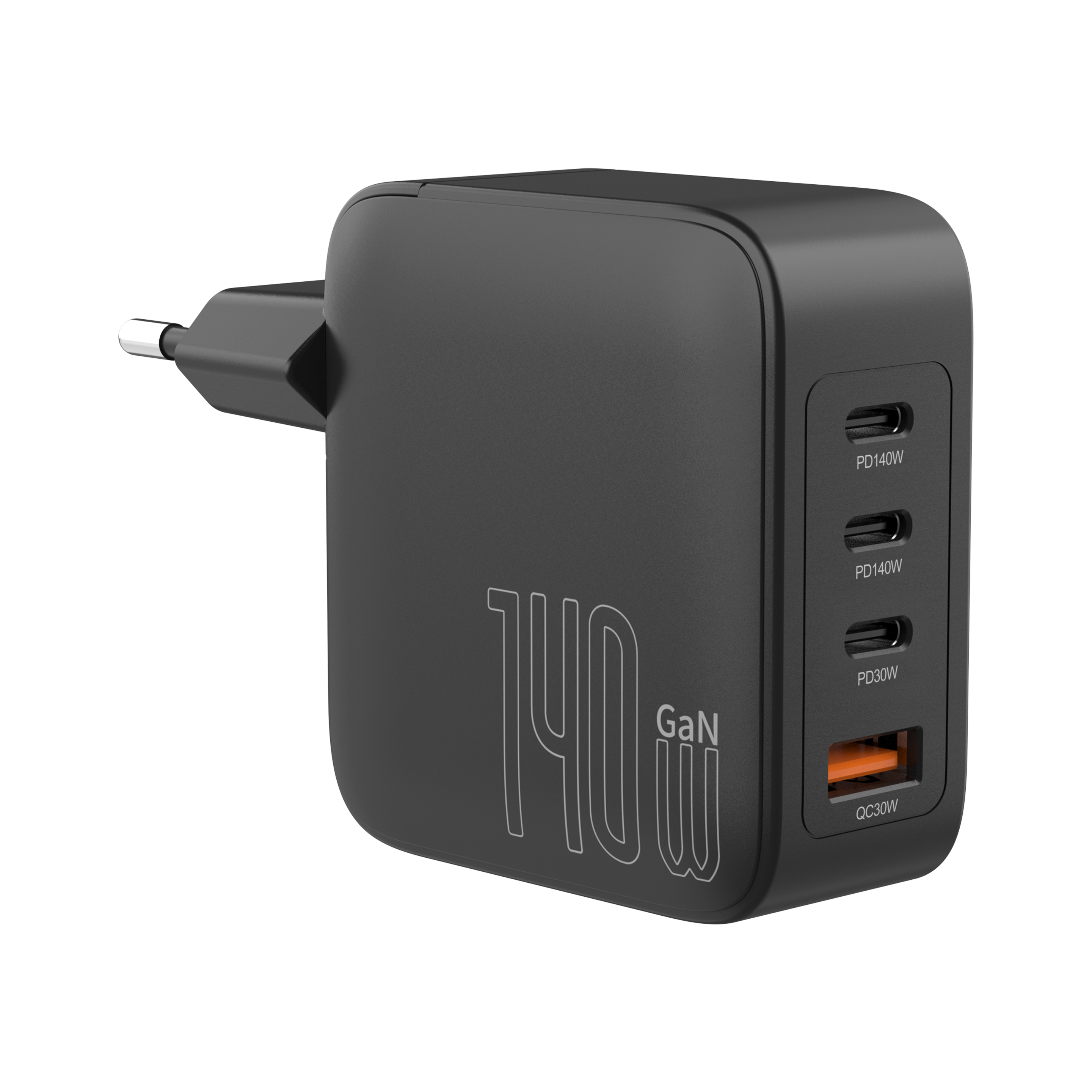

EU

EU

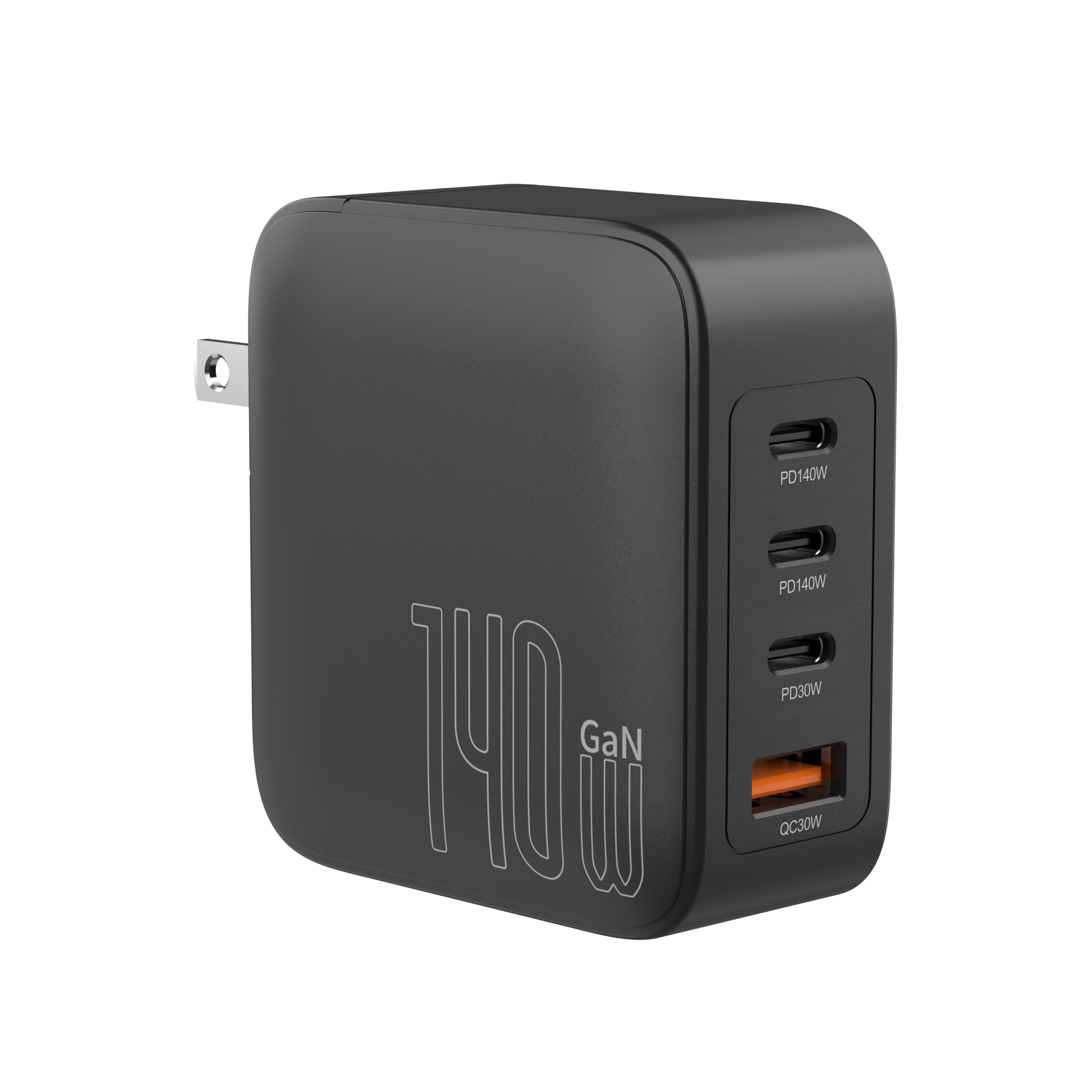

US

US

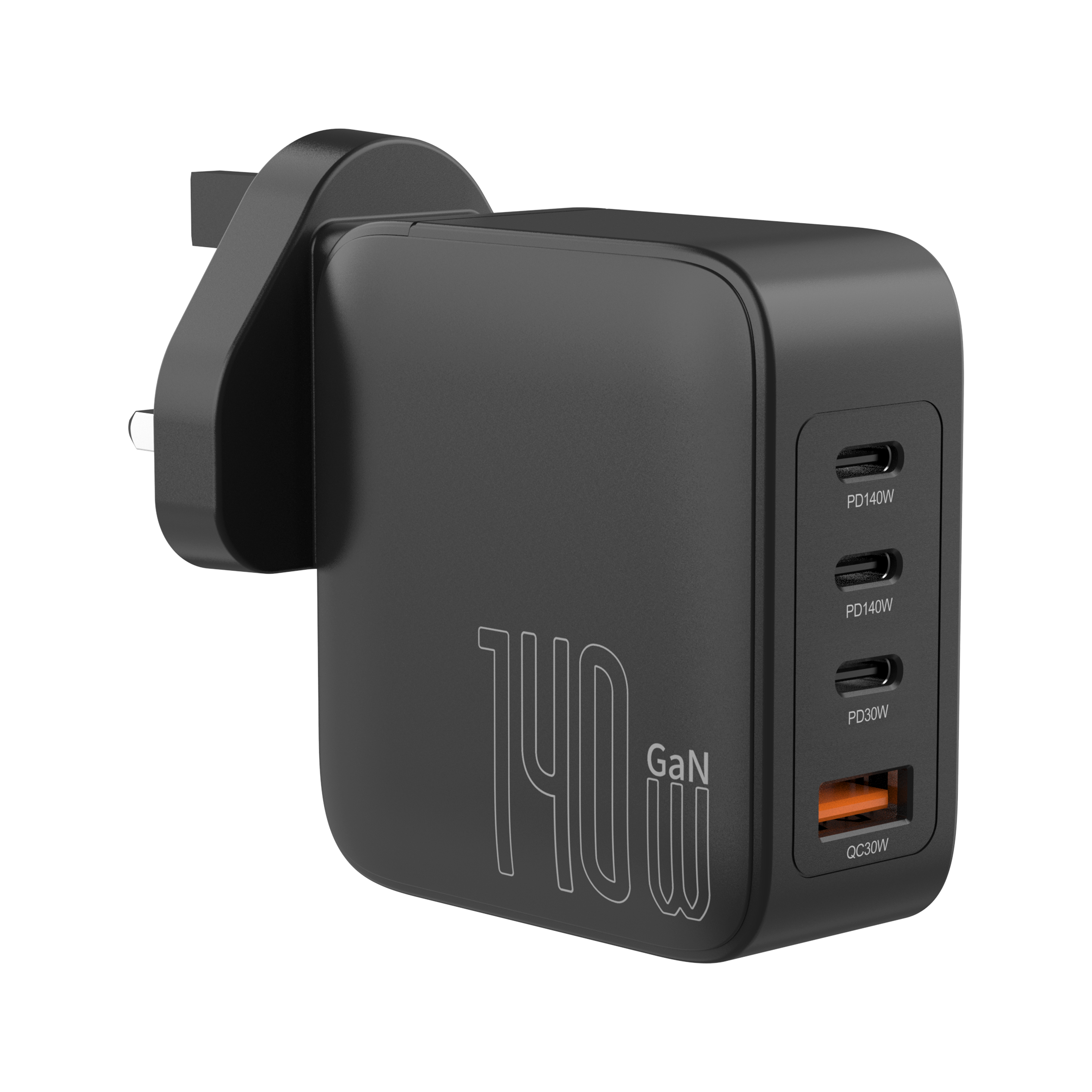

UK

UK

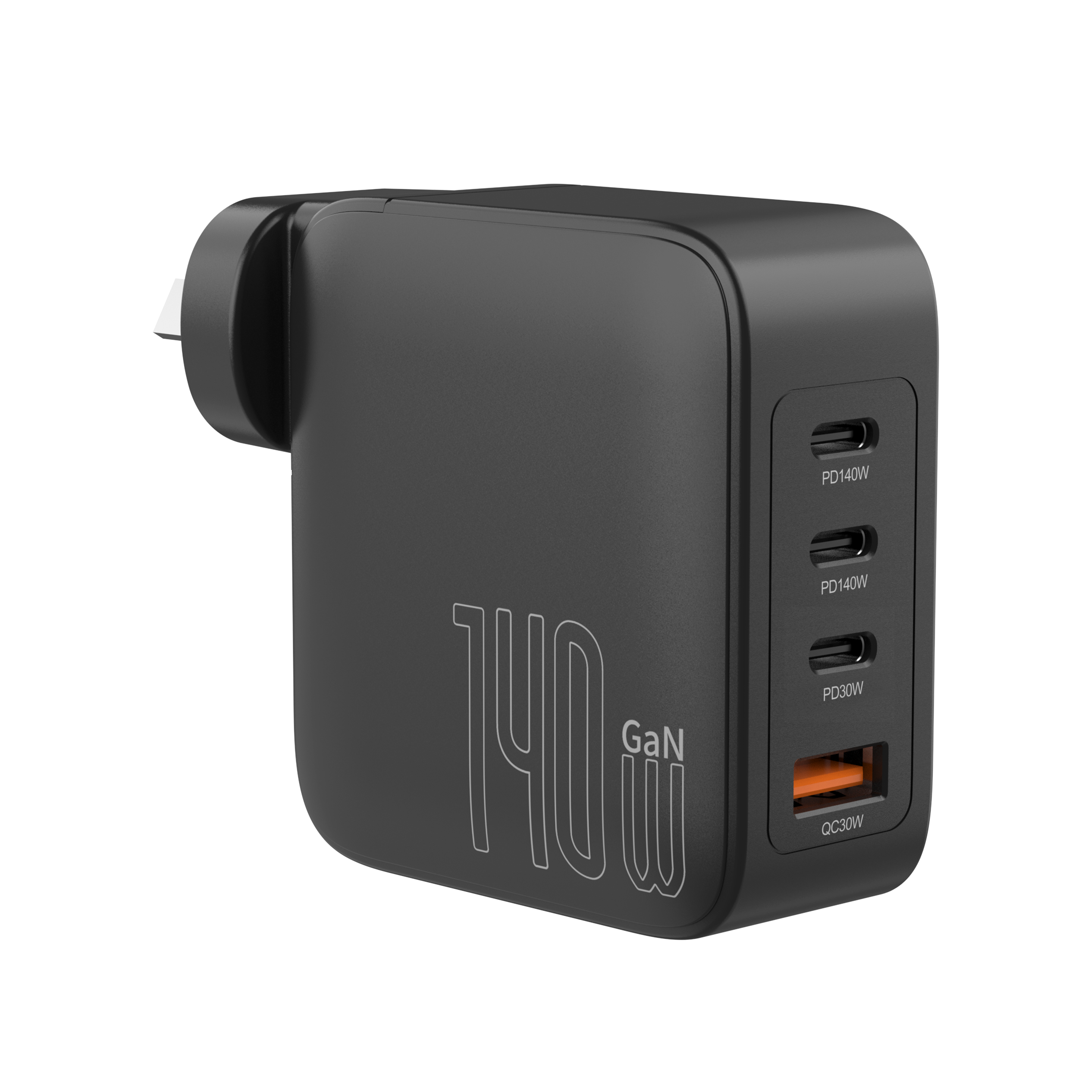

AU

AU
